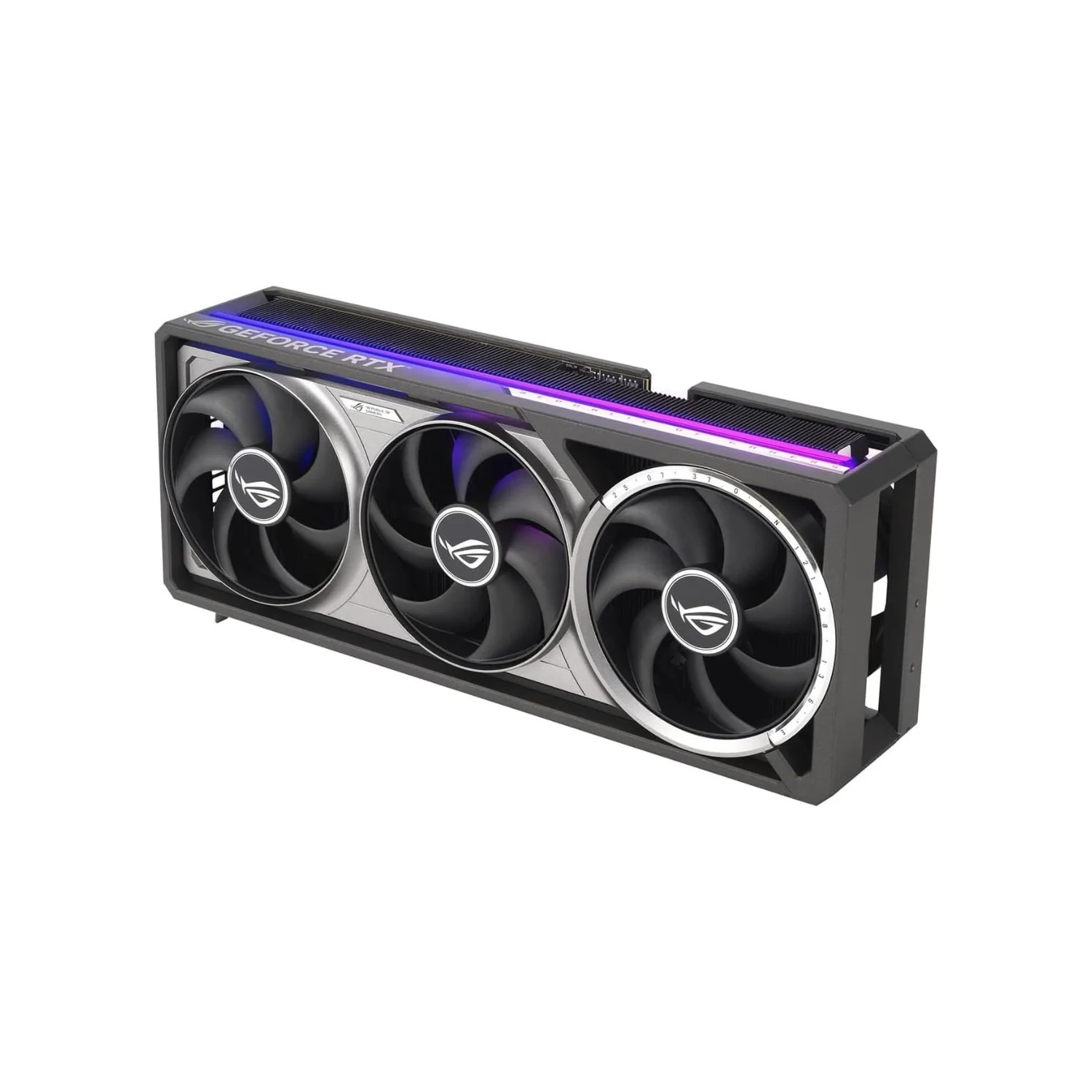

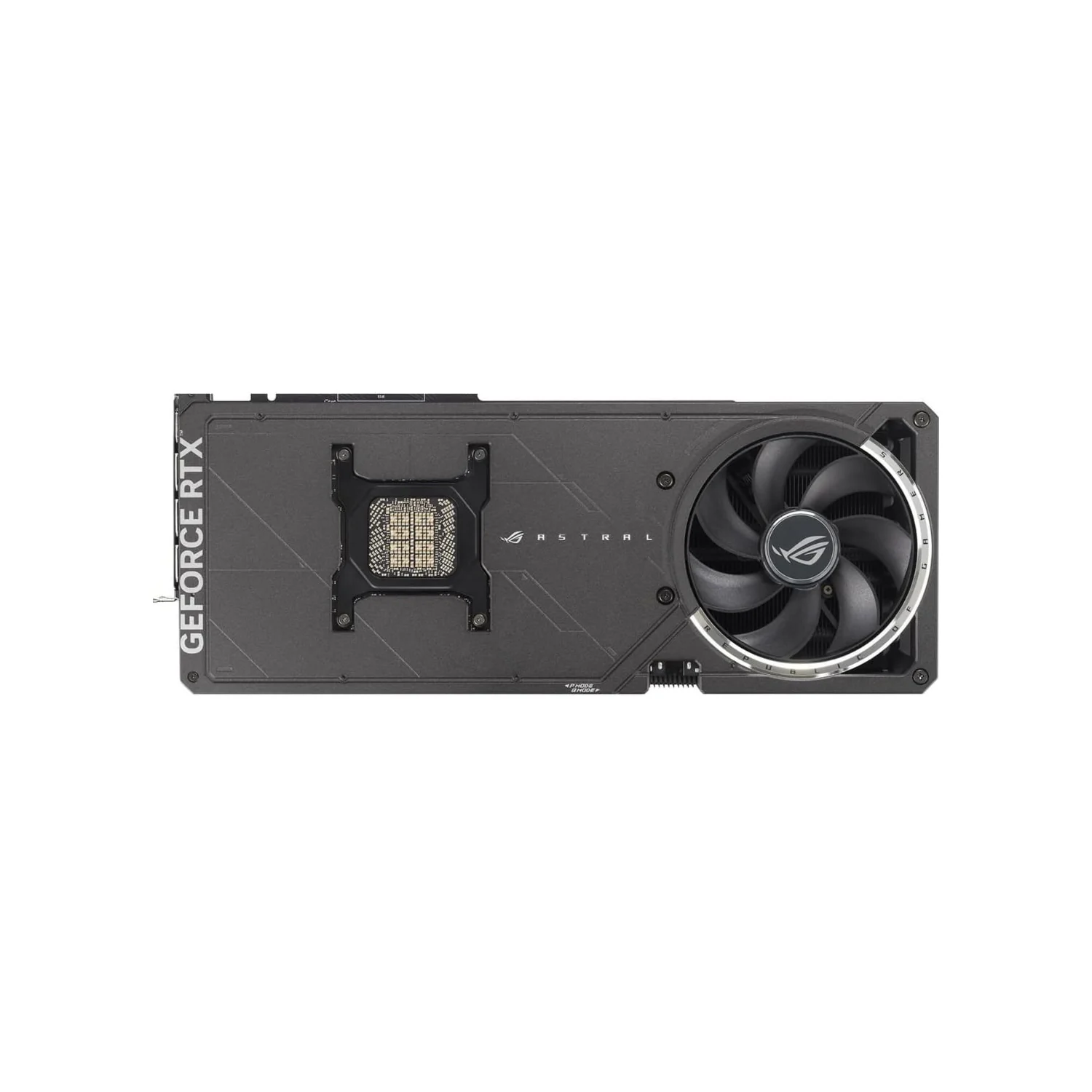

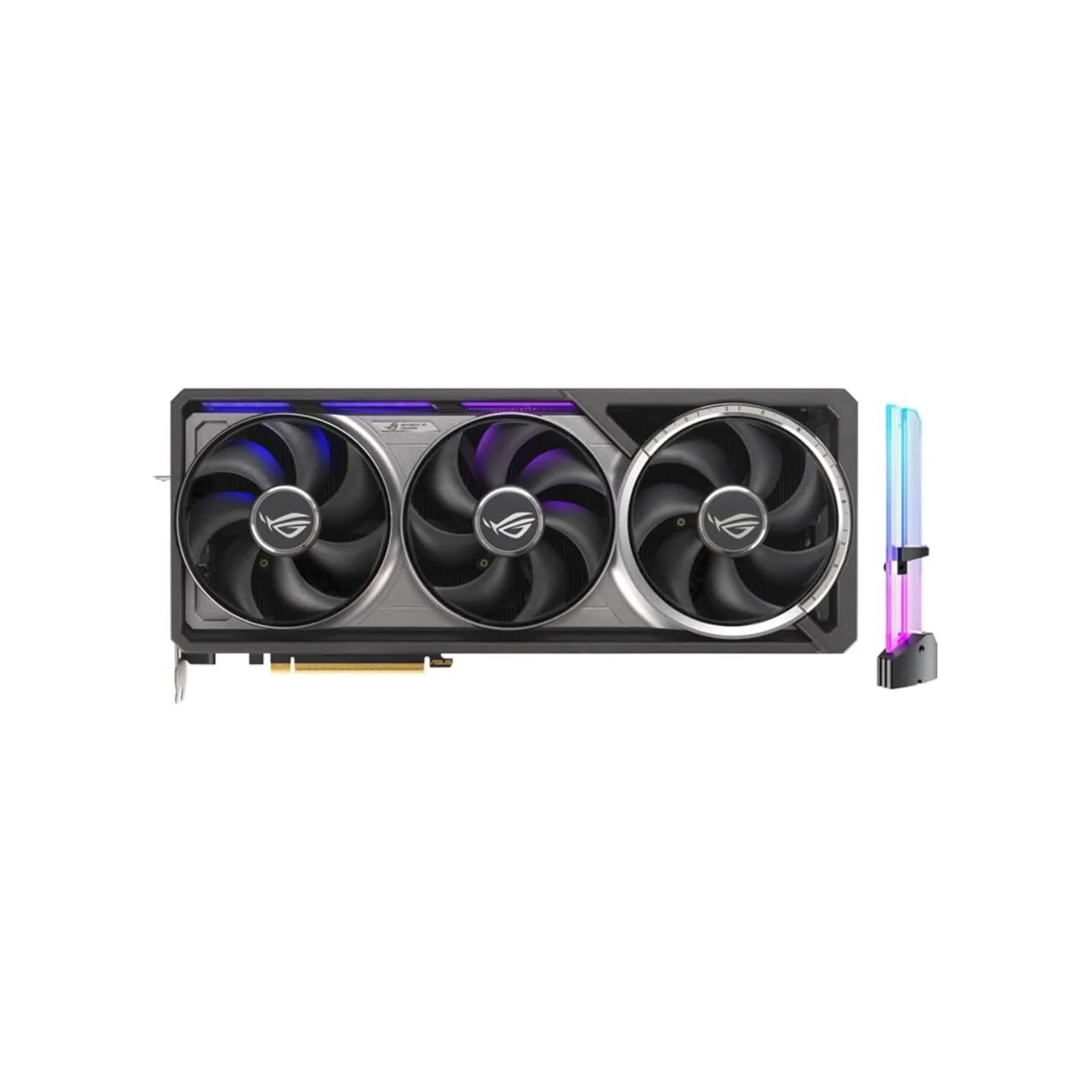

The ASUS ROG Astral GeForce RTX 5090 OC Edition Graphics Card pairs the NVIDIA GeForce RTX 5090 with 32 GB GDDR7 of dedicated video memory. It sits at the very top of the current range, aimed at 4K gaming at high refresh rates with ray tracing enabled, and at demanding creative and AI work such as 3D rendering, 8K video editing and running large local models.
Specifications
| Graphics Processor | NVIDIA GeForce RTX 5090 |
|---|---|
| Video Memory | 32 GB GDDR7 |
| Memory Interface | 512-bit |
| Memory Data Rate | 28 Gbps |
| CUDA Cores | 21,760 |
| Interface | PCIe 5.0 |

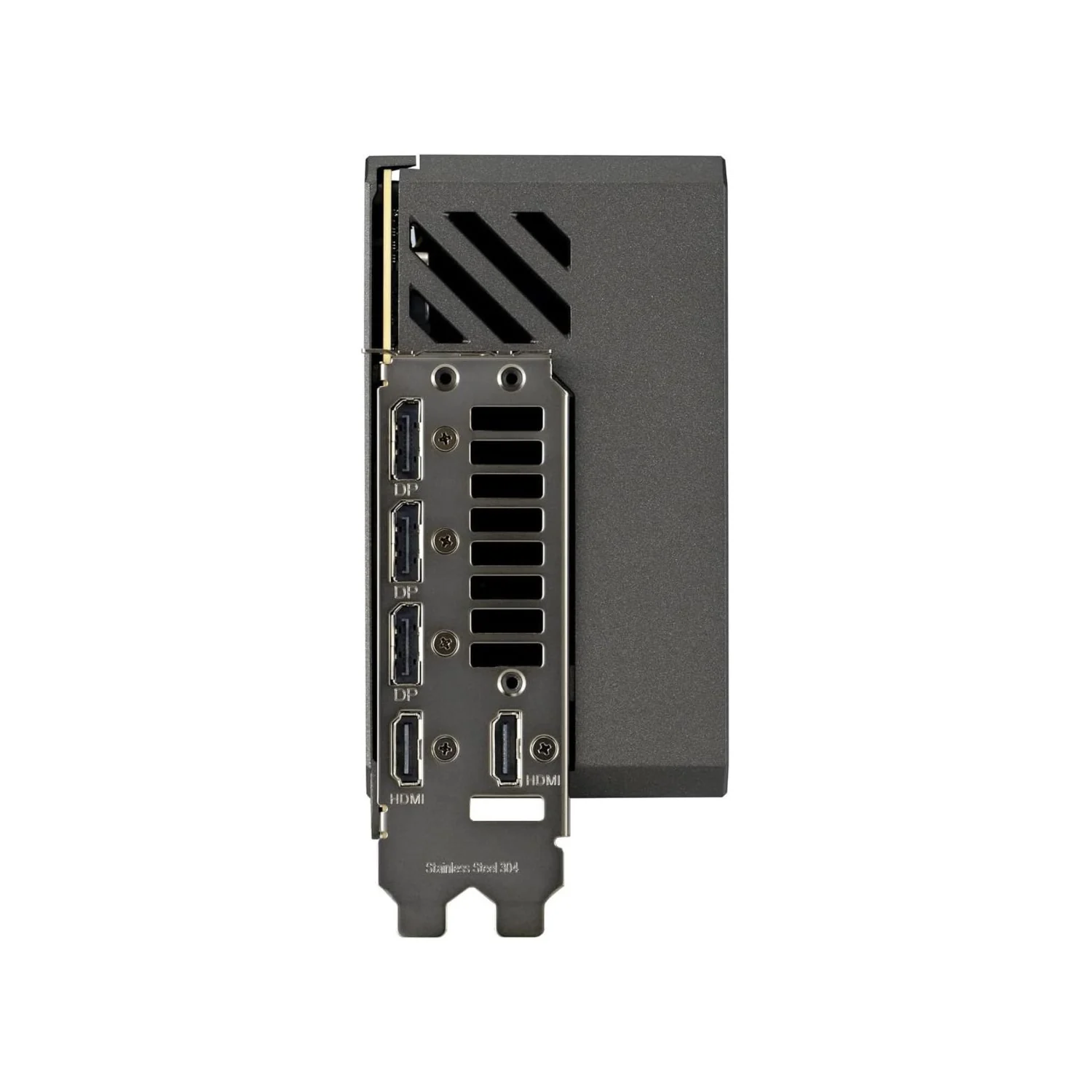

| Display Outputs | 3 x DisplayPort 2.1b; 2 x HDMI 2.1b |
| Maximum Displays | 4 |

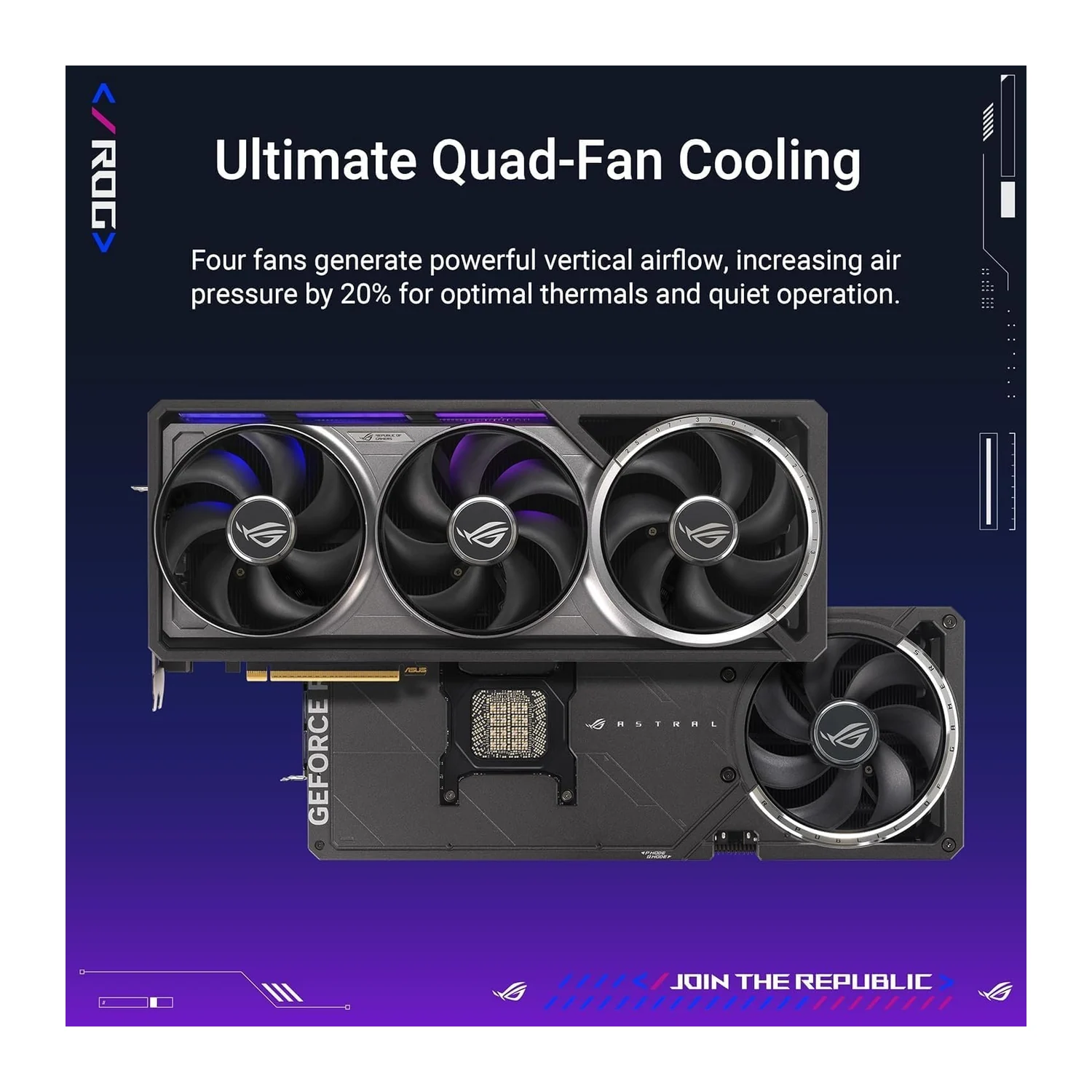

| Cooling | Quad-fan air cooling with vapor chamber |
| Card Dimensions | 357.6 x 149.3 x 76 mm |
| Slot Width | 3.8 slots |
| Power Connectors | 1 x 16-pin |
| Recommended Power Supply | 1000 W |
| Manufacturer part number | ROG-ASTRAL-RTX5090-O32G-GAMING |
Before you order
- Power supply: ASUS recommends at least a 1000 W power supply.
- Power connectors: the card needs 1 x 16-pin from your power supply.
- Case clearance: the card measures 357.6 x 149.3 x 76 mm. Check the maximum GPU length your case supports.
- Slot width: occupies 3.8 expansion slots, so allow space for neighbouring cards.
- Motherboard: a PCIe 5.0 card with an x16 electrical connection; it fits a standard x16 slot and works in earlier PCIe generations at reduced bandwidth.
Condition and warranty
Brand new. Covered by ASUS’s standard manufacturer warranty; register the card with the manufacturer after purchase. If anything goes wrong, contact us and we will help you with the claim.
